Tutorials

This section provides hands-on tutorials for using PlasMol. Each tutorial uses a template input file from the templates/ directory. Run commands from your project root, e.g.:

python src/main.p -f templates/template-classical.in -vv -l plasmol.log

Outputs will appear in your working directory (e.g., CSVs, images).

Tutorial 1: Classical NP Simulation (FDTD Only)

Simulate a gold nanoparticle interacting with a continuous electric field. This demonstrates basic FDTD output, including the optional cross-section images.

  1. Prepare Input: Copy template-classical.in and adjust parameters (e.g., increase t_end for longer simulation). Example snippet:
  start general -- 'general' block wrappers are not necessary
      dt 0.1 -- au
      t_end 50  -- au
      eField_path eField.csv
  end general

  -- classical portion
  start classical
      start source
          sourceType continuous
          sourceCenter -0.04
          sourceSize 0 0.1 0.1
          frequency 5
      end source

      start simulation
          cellLength 0.1
          pmlThickness 0.01
          -- spherical objects with an incident electric field propagating in the
          -- +y direction with a z electric component will have the following symmetry
          symmetries Y 1 Z -1
          surroundingMaterialIndex 1.33 -- surrounds NP in water
      end simulation

      start object
          material Au
          radius 0.03
          center 0 0 0
      end object

      start hdf5
          timestepsBetween 1 -- saves a picture every timestep
          intensityMin 3
          intensityMax 10
          imageDirName hello -- saves images to path hello/.
      end hdf5
  end classical
  1. Run Simulation:
python src/main.py -f /path/to/classical.in -vv -l plasmol.log

or

python -m src.main -f /path/to/classical.in -vv -l plasmol.log

  1. View Outputs:

    • eField.csv: Electric field data. Path defined in input file.

    • hello/: PNG cross-sections (if HDF5 enabled); a GIF is auto-generated. Cross-section of NP simulation Cross-section of a spherical nanoparticle in the xy-plane receiving incident light, whose electric component is measured in the z-direction. Dashed outline added for clarity.

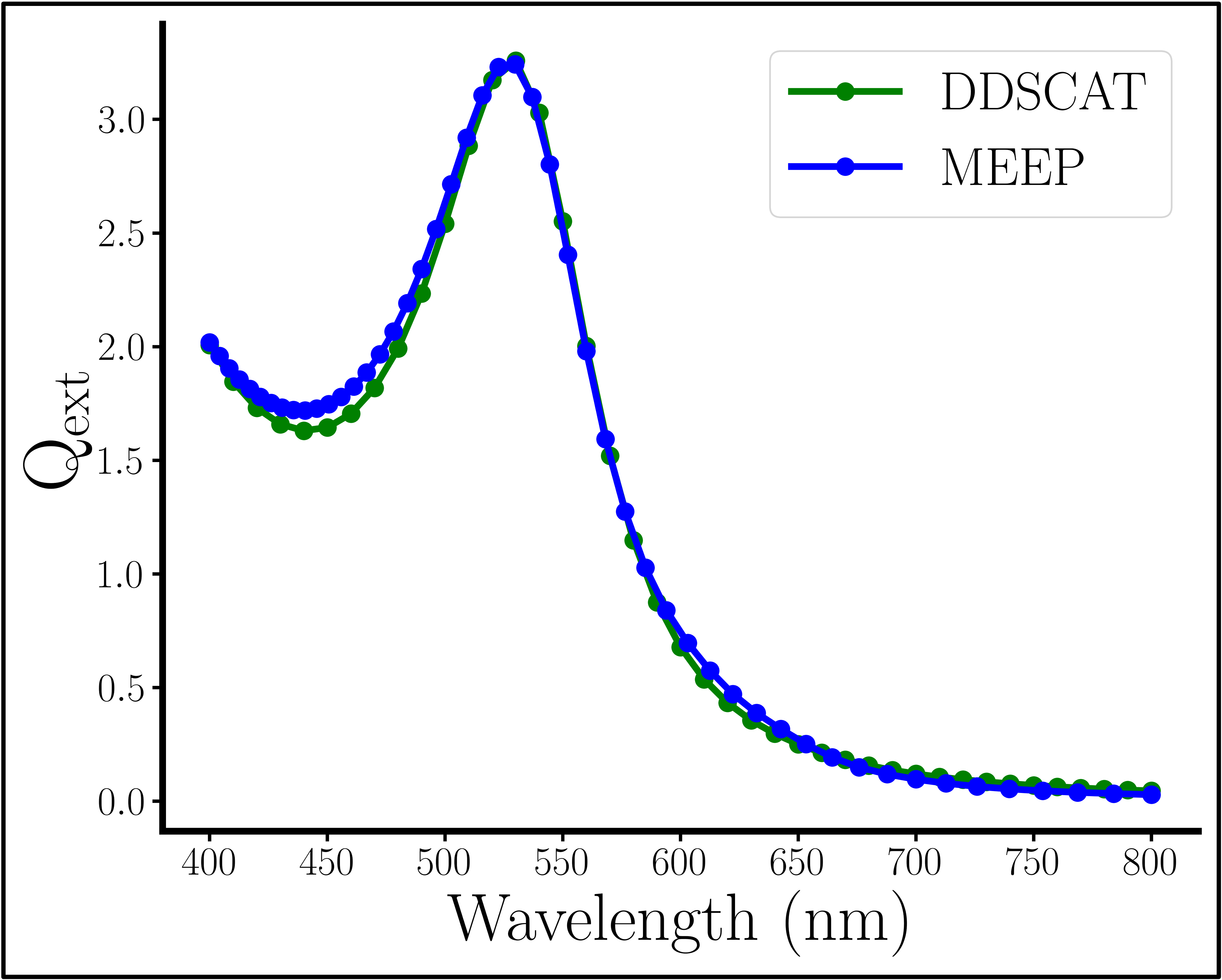

    • For extinction spectra, add custom tracking in src/classical/simulation.py (see API Reference). FDTD Qext spectrum Using instructions from MEEP's documentation and code examples, one can compare the Qext spectrum between the FDTD and DDA methods, implemented using MEEP and DDSCAT respectively.

Tutorial 2: Quantum Molecule Simulation (RT-TDDFT Only)

Compute the induced dipole of a water molecule using a pulsed field. This uses only RT-TDDFT.

  1. Prepare Input: Copy template-quantum.in. Unless you want an absorption spectrum (see Tutorial 3), do not add transform to rttddft block.

    Example snippet:

    start general -- 'general' block wrappers are not necessary
    dt 0.05 -- au
    t_end 1000  -- au
    eField_path eField.csv
end general

-- rt-tddft portion
start quantum
    start rttddft
        start geometry
            O      0.0000000000       0.0000000000       -0.1302052882
            H      1.4891244004       0.0000000000        1.0332262019
            H     -1.4891244004       0.0000000000        1.0332262019
        end geometry
        units bohr
        check_tolerance 1e-12
        charge 0
        spin 0
        basis 6-31g
        xc pbe0
        resplimit 1e-20
        propagator magnus2
        pc_convergence 1e-12
        maxiter 200
        transform -- important to include this flag for abs spectrum simulation
    end rttddft

    start files
        start chkfile -- in case simulation crashes
            frequency 100
            path chkfile.npz
        end chkfile
        pField_path pField.csv
        pField_Transform_path pField-transformed.npz
        eField_vs_pField_path output.png
        eV_spectrum_path spectrum.png -- this image will display the absorption spectrum
    end files

    start source
        shape pulse
        peak_time_au 200
        width_steps 1000
        wavelength_nm 400 -- nm
        intensity_au 5e-5
        dir z
    end source
end quantum

  2. Run Simulation:

    python src/main.py -f /path/to/quantum.in -vv -l plasmol.log -r

    or

    python -m src.main -f /path/to/quantum.in -vv -l plasmol.log -r

  3. View Outputs:

    • eField.csv: Incident field; plots using src/utils/plotting.py for visualization.
    • pField.csv: Induced dipole (polarization) data.

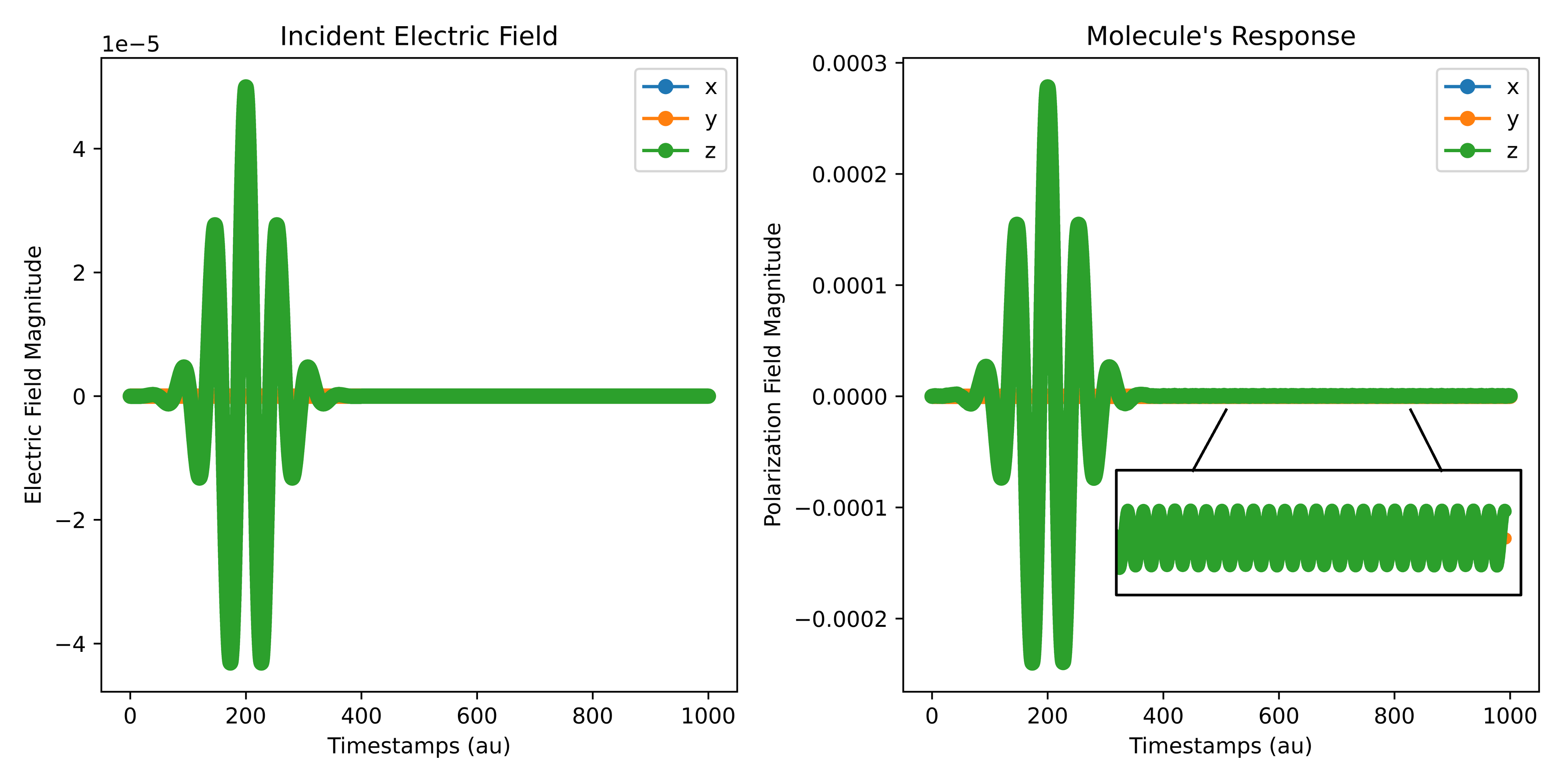

    Electric field vs. polarization plot Example spectra comparing a pulse felt by the molecule (left) with the molecule's induced dipole (right). Inset highlights molecules small oscillations due to excitement.

Tutorial 3: Molecular Absorption Spectrum (RT-TDDFT with transform flag)

Compute the absorption spectrum of a water molecule using three Dirac delta kicks. This uses multithreaded RT-TDDFT and Fourier transform.

  1. Prepare Input: Copy template-quantum.in. Enable transform for spectrum calculation.

    Example snippet:

    start general -- 'general' block wrappers are not necessary
    dt 0.1 -- au
    t_end 4000  -- au
    eField_path eField.csv
end general

-- rt-tddft portion
start quantum
    start rttddft
        start geometry
            O      0.0000000000       0.0000000000       -0.1302052882
            H      1.4891244004       0.0000000000        1.0332262019
            H     -1.4891244004       0.0000000000        1.0332262019
        end geometry
        units bohr
        check_tolerance 1e-12
        charge 0
        spin 0
        basis 6-31g
        xc pbe0
        resplimit 1e-20
        propagator magnus2
        pc_convergence 1e-12
        maxiter 200
        transform -- important to include this flag for abs spectrum simulation
    end rttddft

    start files
        start chkfile -- in case simulation crashes
            frequency 100
            path chkfile.npz
        end chkfile
        pField_path pField.csv
        pField_Transform_path pField-transformed.npz
        eField_vs_pField_path output.png
        eV_spectrum_path spectrum.png -- this image will display the absorption spectrum
    end files

    start source
        shape kick -- needs to be a delta 'kick', not 'pulse'
        peak_time_au 0.1
        width_steps 5
        intensity_au 5e-5
        -- dir z -- do not need to specify direction when transform flag used
    end source
end quantum

  2. Run Simulation:

    python src/main.py -f /path/to/abs_spectrum.in -vv -l plasmol.log -r

    or

    python -m src.main -f /path/to/abs_spectrum.in -vv -l plasmol.log -r

  3. View Outputs:

    • pField.csv: Induced dipole (polarization) data.
    • spectrum.png: Absorption spectrum plot.

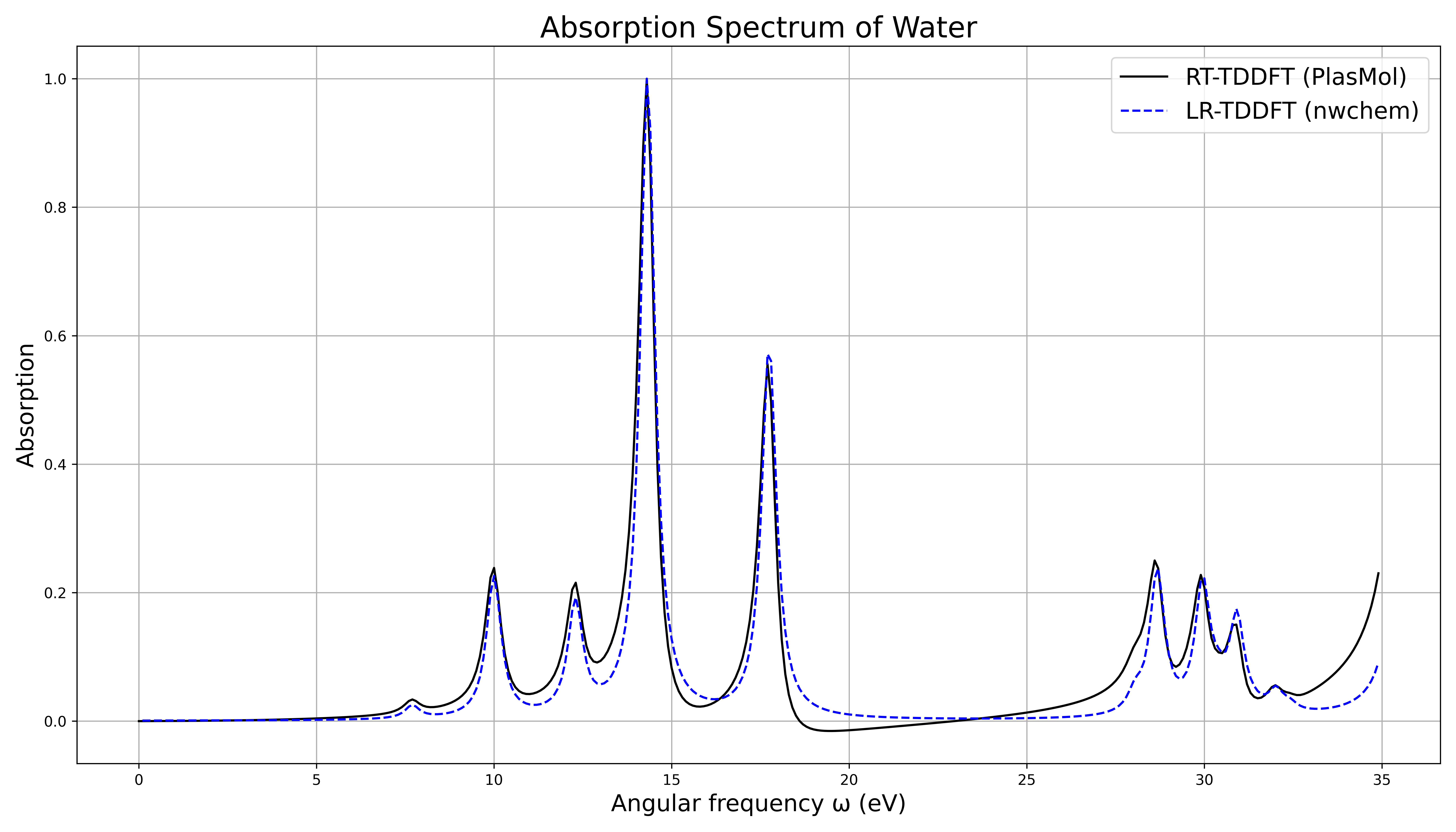

    Absorption spectrum of water molecule Absorption spectrum run as compared to an LR-TDDFT standard from nwchem.

Tutorial 4: Full PlasMol Simulation (NP + Molecule)

Simulate a gold NP with a water molecule inside, tracking plasmon-molecule interactions.

  1. Prepare Input: Copy template-plasmol.in. Combine classical NP with quantum molecule. Example snippet:

    ```lua start general -- 'general' block wrappers are not necessary dt 0.1 -- au t_end 4000 -- au eField_path eField.csv end general

    -- rt-tddft portion
start quantum
    start rttddft
        start geometry
            O      0.0000000000       0.0000000000       -0.1302052882
            H      1.4891244004       0.0000000000        1.0332262019
            H     -1.4891244004       0.0000000000        1.0332262019
        end geometry
        units bohr
        check_tolerance 1e-12
        charge 0
        spin 0
        basis 6-31g
        xc pbe0
        resplimit 1e-20
        propagator magnus2
        pc_convergence 1e-12
        maxiter 200
        transform -- important to include this flag for abs spectrum simulation
    end rttddft

    start files
        start chkfile -- in case simulation crashes
            frequency 100
            path chkfile.npz
        end chkfile
        pField_path pField.csv
        pField_Transform_path pField-transformed.npz
        eField_vs_pField_path output.png
        eV_spectrum_path spectrum.png -- this image will display the absorption spectrum
    end files

    -- if source is given in quantum block but a classical block is found,
    -- this source will be ignored.
    -- start source
        -- shape kick
        -- peak_time_au 0.1
        -- width_steps 5
        -- intensity_au 5e-5
    -- end source
end quantum

-- classical portion
start classical
    start source
        sourceType continuous
        sourceCenter -0.04
        sourceSize 0 0.1 0.1
        frequency 5
    end source

    start simulation
        cellLength 0.1
        pmlThickness 0.01
        -- spherical objects with an incident electric field propagating in the
        -- +y direction with a z electric component will have the following symmetry
        symmetries Y 1 Z -1
        surroundingMaterialIndex 1.33 -- surrounds NP in water
    end simulation

    start object
        material Au
        radius 0.03
        center 0 0 0
    end object

    start hdf5
        timestepsBetween 1 -- saves a picture every timestep
        intensityMin 3
        intensityMax 10
        imageDirName hello -- saves images to path hello/.
    end hdf5
end classical

    ```

  2. Run Simulation:

    python src/main.py -f /path/to/plasmol.in -vv -l plasmol.log -r

    or

    python -m src.main -f /path/to/plasmol.in -vv -l plasmol.log -r

  3. View Outputs:

    • Similar images, gifs, and spectra to the tutorials above can be found in this instance too.
    • For SERS or other metrics, inject custom functions (see API Reference).

These tutorials cover basics—experiment with parameters and check logs for issues. For advanced topics, see API Reference.
